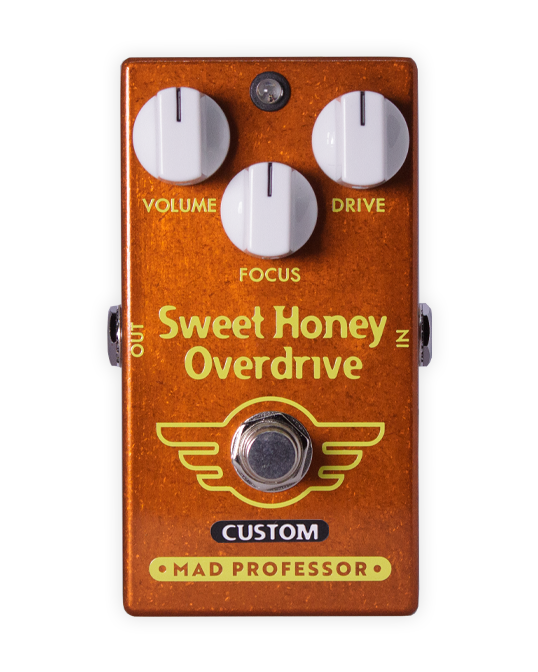

Sweet Honey Overdrive Custom

Sweet Honey Overdrive Custom Fat Bee mod increases the bass response of the pedal while retaining the touch sensitivity. The Custom mods are done in our shop in Tampere, Finland.

Mad Professor Sweet Honey Overdrive (SHOD) is a touch sensitive low gain overdrive pedal. It is designed to overdrive distorted amplifiers and give dynamically controlled light overdrive on clean sounds.

Distortion level can be controlled by pick attack and pickup strength. Harder picking for overdrive and softer for a cleaner tone. With the unique Focus control, you can adjust the feel and dynamics of the pedal as well as overall EQ. Turning Focus CCW you need to play harder to get distortion and the tone is softer, great for jazz and blues. Focus turned CW gives a slight treble boost and earlier distortion great for classic rock.

CONTROLS:

VOLUME: Sets the output volume.

DRIVE: Controls the amount of overdrive.

FOCUS: Controls how easily the circuit distorts as well as adjusting overall EQ. Turning CCW gives less distortion and a mellow effect, turning CW gives a slight treble boost and earlier distortion. Good starting point is 11 o’clock.

TECHNICAL SPECIFICATION:

Power requirements: 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve.

Current consumption: 5 mA at 9VDC

Supply Voltage Range: 7,5-18VDC, 9V Recommended.

Input impedance: 260K Ohm

Output impedance: 25K Ohm

True Bypass

EAN: 643003309 119 7

Made in Taiwan
